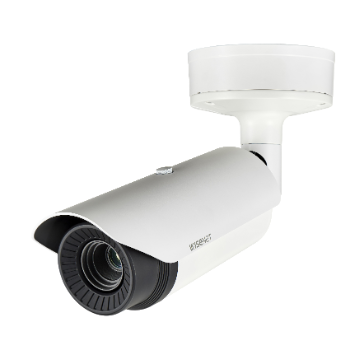

Wisenet Thermal Camera TNO-4040TR
Max. 640 x 480 resolution support | Built-in 13/19mm fixed lens | H.265, H.264, MJPEG codec | Max. 30fps@all resolutions (H.265, H.264, MJPEG) | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Temperature detection, Shock detection | Micro SD / SDHC / SDXC memory slot (Max. 256GB) | Hallway View, WiseStreamII support | PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10
Deskripsi Produk
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer | |
| NETD | ＜50mK | |
| Pixel size | 17㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB : Micro USB Type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 19mm fixed focal | |
| Max. Aperture Ratio | F1.0 | |
| Angular Field of View | H: 32˚ / V: 24.3˚ / D: 39.2˚ | |
| Min. Object Distance | 11m(36.09ft) | |
| Focus Control | Fixed | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection | |
| Alarm I/O | Input 1ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Radiometry | ||
| Temperature detect range | -20˚C~130˚C(-4˚F~266˚F) | |
| Temperature accuracy | ±5℃(≤100℃), ±20%(>100℃) | |
| Temperature detection | 3ea rectanguler | |
| Additional | Hybrid palettes, Spot temperature reading | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Resolution | 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10, NEMA4X | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC | |
| Power Consumption | PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W |
|
Informasi & Panduan
Beli Wisenet Thermal Camera TNO-4040TR Original & Bergaransi Resmi di Ouffice
Wisenet Thermal Camera TNO-4040TR tersedia di Ouffice dengan jaminan produk original bergaransi resmi. Kami adalah authorized reseller resmi yang bersumber langsung dari distributor di Indonesia.
Produk ini masuk dalam kategori Bullet IP Camera dari Wisenet. Dapatkan harga terbaik dengan menghubungi tim sales kami melalui WhatsApp, konsultasi gratis tanpa kewajiban beli.
Ouffice melayani pembelian satuan maupun pengadaan dalam jumlah besar untuk perusahaan, instansi pemerintah, dan lembaga pendidikan di seluruh Indonesia.
Garansi & Layanan Purna Jual Wisenet Thermal Camera TNO-4040TR
Unit Wisenet Thermal Camera TNO-4040TR yang Anda beli melalui Ouffice dilengkapi dengan garansi resmi produsen. Proses klaim garansi dapat dilakukan langsung melalui service center resmi Wisenet di Indonesia.
Kami juga menyediakan layanan konsultasi teknis pasca-pembelian untuk membantu instalasi, konfigurasi awal, dan troubleshooting dasar tanpa biaya tambahan.
Mengapa Membeli Wisenet Thermal Camera TNO-4040TR di Ouffice?
Produk Original. 100% resmi, bukan rekondisi atau parallel import. Setiap unit memiliki serial number yang dapat diverifikasi ke produsen.
Harga Bersaing. Bandingkan harga kami sebelum memutuskan. Untuk pembelian volume, kami memberikan penawaran harga khusus.
Pengiriman Aman. Dikemas dengan standar pengiriman produk elektronik dan dikirim ke seluruh Indonesia dengan jasa pengiriman terpercaya.
Hubungi kami sekarang melalui WhatsApp atau lihat produk Bullet IP Camera lainnya di Ouffice.
