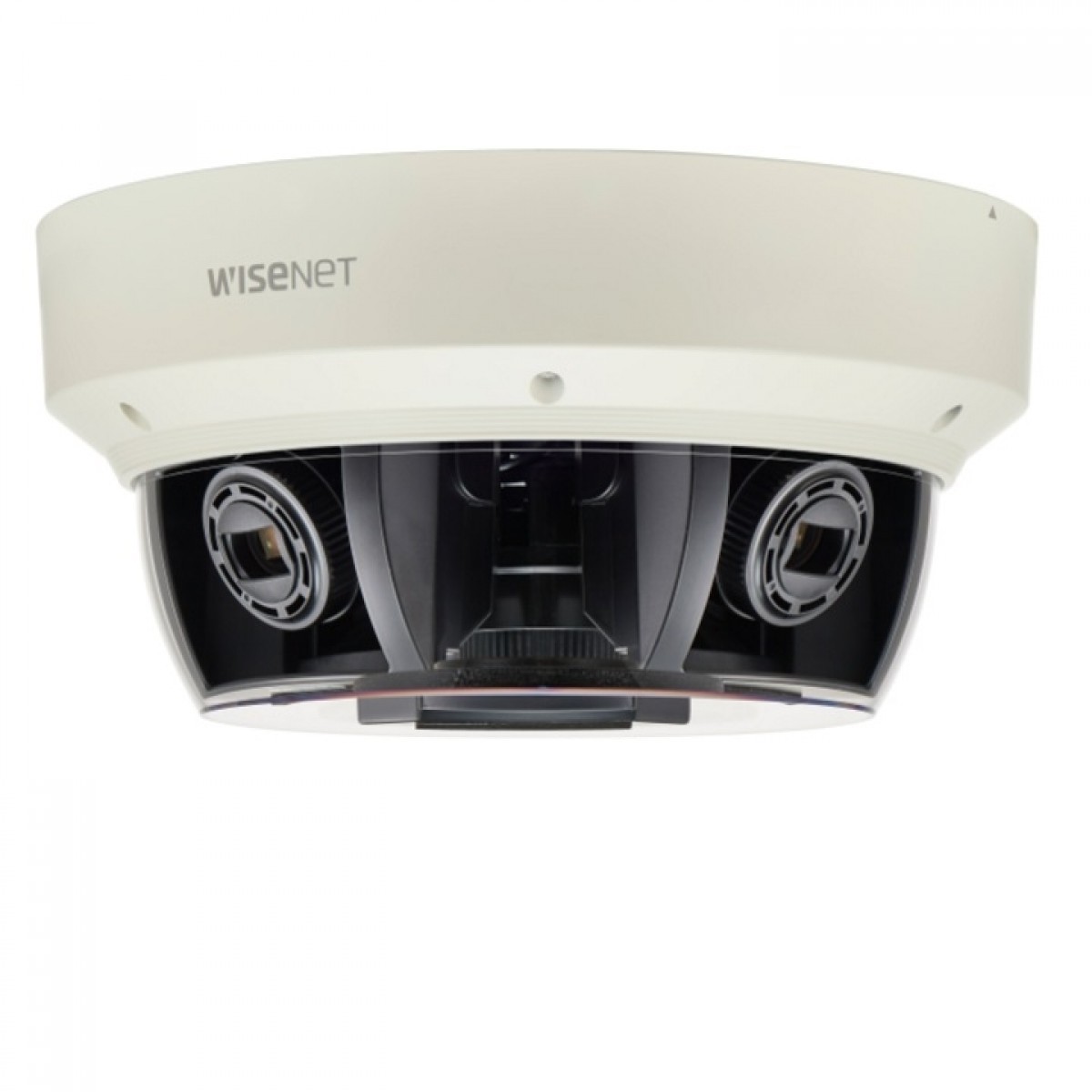

Wisenet Multi Directional PNM-9080VQ
4ea x 1920x1080 resolution (Max. 8MP) | 4ea x 2.8 ~ 12mm (4.3x) motorized varifocal lens | 4ea x Max. 60fps@2M (H.265, H.264) | Digital Image Stabilization with Built-in Gyro Sensor | H.265, H.264, MJPEG Codec Supported | Day & Night (ICR), WDR (150dB) | Motion detection, Tampering, Advanced Video Analytics | SD / SDHC / SDXC Memory slot, WiseStreamII Support
Deskripsi Produk
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS: each CH | |
| Effective Pixels | 1945(H)x1109(V): each CH | |
| Min. Illumination | Color: 0.015Lux(F1.4, 1/30sec)(30IRE) B/W: 0.0015Lux (F1.4, 1/30sec)(30IRE) |
|
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal | |
| Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) | |
| Angular Field of View | H: 119.5˚(Wide)~27.9˚(Tele), V: 62.8˚(Wide)~15.7˚(Tele), D: 142.1˚(Wide)~32.0˚(Tele) | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris, P iris | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | Quad mode: Pan +/-30˚, Tilt 10˚ ~ 41˚, Rotate +-90˚ Center mode: Pan +/-60˚, Tilt 10˚ ~ 41˚ / 10˚ ~ 90˚(CH2/Center), Rotate +-90˚ |
|
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
|
| Network | ||
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) | |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 5GB RAM, 1280MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Electrical | ||
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+: Max 25.5W 12VDC: Max 21.6W |
|
Informasi & Panduan
Beli Wisenet Multi Directional PNM-9080VQ Original & Bergaransi Resmi di Ouffice
Wisenet Multi Directional PNM-9080VQ tersedia di Ouffice dengan jaminan produk original bergaransi resmi. Kami adalah authorized reseller resmi yang bersumber langsung dari distributor di Indonesia.
Produk ini masuk dalam kategori Dome IP Camera dari Wisenet. Dapatkan harga terbaik dengan menghubungi tim sales kami melalui WhatsApp, konsultasi gratis tanpa kewajiban beli.
Ouffice melayani pembelian satuan maupun pengadaan dalam jumlah besar untuk perusahaan, instansi pemerintah, dan lembaga pendidikan di seluruh Indonesia.
Garansi & Layanan Purna Jual Wisenet Multi Directional PNM-9080VQ
Unit Wisenet Multi Directional PNM-9080VQ yang Anda beli melalui Ouffice dilengkapi dengan garansi resmi produsen. Proses klaim garansi dapat dilakukan langsung melalui service center resmi Wisenet di Indonesia.
Kami juga menyediakan layanan konsultasi teknis pasca-pembelian untuk membantu instalasi, konfigurasi awal, dan troubleshooting dasar tanpa biaya tambahan.
Mengapa Membeli Wisenet Multi Directional PNM-9080VQ di Ouffice?
Produk Original. 100% resmi, bukan rekondisi atau parallel import. Setiap unit memiliki serial number yang dapat diverifikasi ke produsen.
Harga Bersaing. Bandingkan harga kami sebelum memutuskan. Untuk pembelian volume, kami memberikan penawaran harga khusus.
Pengiriman Aman. Dikemas dengan standar pengiriman produk elektronik dan dikirim ke seluruh Indonesia dengan jasa pengiriman terpercaya.
Hubungi kami sekarang melalui WhatsApp atau lihat produk Dome IP Camera lainnya di Ouffice.
