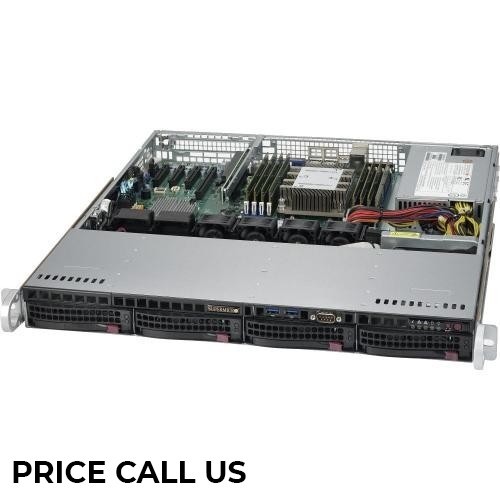

SUPERMICRO SuperServer SYS-5019P-MR
Intel C621 chipset | 1 PCI-E 3.0 x16 slot (FH, HL) | 2x 1GbE with Marvell® 88E1512 | 4 Hot-swap 3.5 SATA3 bays w/ RAID | 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0 | Integrated IPMI 2.0 and KVM with Dedicated LAN | 400W Redundant Platinum Power Supplies w/ BBP option | 6 DIMMs, up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM | Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)
Deskripsi Produk
| Main Specifications | ||
| Built-in Devices | Super X11SPM-F | |
| Device Type | SuperServer | |
| Dimensions (HxWxD) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.8" (503mm) | |
| Enclosure Color | Black | |
| Form Factor | 1U Rackmount - CSE-813MFTQC-R407CB | |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) - Net Weight: 17.6 lbs (8 kg) | |
| Processor | ||
| Cache/Core | Up to 28 Cores | |
| Compatible Processors | 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake) | |
| Support CPU TDP 70-165W | ||
| Compatible Socket | Single Socket P (LGA 3647) | |
| System Memory | ||
| Memory Capacity | 6 DIMM slots | |
| Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM | ||
| Supports Intel Optane DCPMM | ||
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| On-Board Devices | ||
| Chipset | Intel C621 chipset | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual Gigabit Ethernet LAN with Marvell 88E1512 | |
| SATA | SATA3 (6Gbps) via C621 controller | |
| RAID 0, 1, 5, 10 support | ||
| VGA | ASPEED AST2500 BMC | |
| Input / Output | ||
| DOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
| LAN | 2 RJ45 1GbE LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| Serial Port / Headers | 2 COM ports (1 rear, 1 header) | |
| USB | 4 USB 3.0 ports (2 front, 2 rear) | |
| 2 USB 2.0 ports (rear) | ||
| VGA | 1 VGA port | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, Network activity LEDs, System Overheat LED | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x16 slot (FH, HL) | |
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| M.2 | Interface: PCIe 3.0 x4 | |
| Form Factor: 2242, 2280 | ||
| Peripheral Drives | ||
| Optional | 1 Slim DVD-ROM drive | |
| 1 USB + COM port tray | ||
| System Cooling | ||
| Fans | 4x 40x28mm PWM fans, 2x fans for AOC cooling | |
| Optional 2 fans for AOC cooling | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Fans with tachometer monitoring | |
| Status monitor for speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Level Certified | |
| Power Supply | 400W 1U Redundant Power Supplies with PMbus | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Specifications | ||
| Non-operating Relative Humidity | 5% to 95% (non-condensing) | |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity | 8% to 90% (non-condensing) | |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Software | Intel Node Manager, IPMI 2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watch Dog | |
| Parts List - (Items Included) | ||
| Backplane | 1x BPN-SAS3-815TQ | |
| Cables | 1x CBL-SAST-0644 | |
| Fans | 4x FAN-0154L4 | |
| Heatsink / Retention | 1x SNK-P0067PS | |
| Manual | 1x MNL-2008-QRG | |
| Motherboard / Chassis | 1x MBD-X11SPM-F / 1x CSE-813MFTQC-R407CB | |
| Parts | 1x MCP-120-00031-0N | |
| Power Supply | 2x PWS-407P-1R | |
| Riser Card | 1x RSC-RR1U-E16 | |
Informasi & Panduan
Beli SUPERMICRO SuperServer SYS-5019P-MR Original & Bergaransi Resmi di Ouffice
SUPERMICRO SuperServer SYS-5019P-MR tersedia di Ouffice dengan jaminan produk original bergaransi resmi. Kami adalah authorized reseller resmi yang bersumber langsung dari distributor di Indonesia.
Produk ini masuk dalam kategori Rackmount Enterprise Server dari Supermicro. Dapatkan harga terbaik dengan menghubungi tim sales kami melalui WhatsApp, konsultasi gratis tanpa kewajiban beli.
Ouffice melayani pembelian satuan maupun pengadaan dalam jumlah besar untuk perusahaan, instansi pemerintah, dan lembaga pendidikan di seluruh Indonesia.
Garansi & Layanan Purna Jual SUPERMICRO SuperServer SYS-5019P-MR
Unit SUPERMICRO SuperServer SYS-5019P-MR yang Anda beli melalui Ouffice dilengkapi dengan garansi resmi produsen. Proses klaim garansi dapat dilakukan langsung melalui service center resmi Supermicro di Indonesia.
Kami juga menyediakan layanan konsultasi teknis pasca-pembelian untuk membantu instalasi, konfigurasi awal, dan troubleshooting dasar tanpa biaya tambahan.
Mengapa Membeli SUPERMICRO SuperServer SYS-5019P-MR di Ouffice?
Produk Original. 100% resmi, bukan rekondisi atau parallel import. Setiap unit memiliki serial number yang dapat diverifikasi ke produsen.
Harga Bersaing. Bandingkan harga kami sebelum memutuskan. Untuk pembelian volume, kami memberikan penawaran harga khusus.
Pengiriman Aman. Dikemas dengan standar pengiriman produk elektronik dan dikirim ke seluruh Indonesia dengan jasa pengiriman terpercaya.
Hubungi kami sekarang melalui WhatsApp atau lihat produk Rackmount Enterprise Server lainnya di Ouffice.
