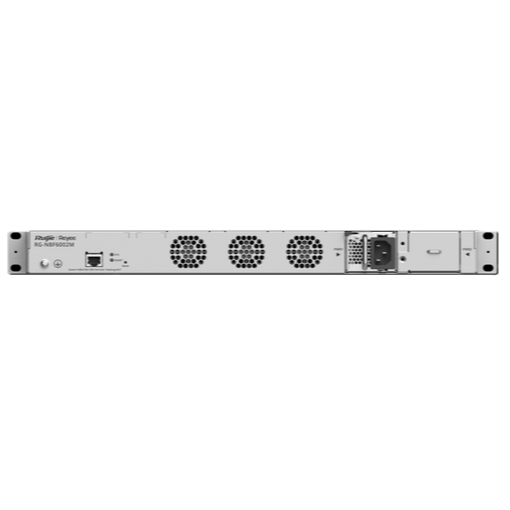

RUIJIE REYEE RG-NBF6002M

Key Specification

Net Weight

• 5.4 kg

Number of Fan Modules

• 3

Switching Capacity

• 216 Gbps

Forwarding Rate

• 132 Mpps

Dimensions (W x D x H)

• 442 mm x 460 mm x 44 mm
  (17.40 in. x 18.11 in. x 1.73 in.)

Mean Time Between Failure (MTBF)

• > 400000 hours

Power Supply Surge Protection

• Common: 6 Kv
• Differential: 6 kV

Max. Number of VLANs

• 4094

MAC Address Table Size

• 32000

ARP Table Size

• 4000

Certification

• CE, CB, SDPPI, IPV6, SIRIM

Model

RG-NBF6002M

Basic

Number of Line Card Slots

• 2

Number of Management Ports

• 1 x 10/100/1000BASE-T MGMT port

Recommended Client Limits

• 1200

Recommended Camera Limits

• 200W H265:800
  400W H265:400
  800W H265:200

PoE Support

• N

Max. Power Consumption

• 126 W

Device Dimensions (W x D x H)

• 442 mm x 460 mm x 44 mm (17.40 in. x 18.11 in. x 1.73 in.)

Switching Capacity

• 216Gbps

Forwarding Rate

• 132Mpps

Power Supply Surge Protection

• Common 6 kV
  Differential 6 kV

Port Surge Protection

• Common 6 kV

Temperature Alarm

• Ambient temperature monitoring

Operating Temperature

• 0°C to 50°C (32°F to 122°F)

EMC

• GB/T 9254.1-2021

Casing

• Al-Zn-Coated Steel

Mounting

• Rack-mount

Power Supply Options

• 2 x power module slots
• The NBF6002M OLT power supply (model PA150I-FS) is not included with the main unit by default and must be ordered separately.

Buttons (Reset Button Excluded)

• 0

Gross Weight

• 6.82 kg (15.03 lbs)

Net Weight

• 5.4 kg

Software Features

VLAN

• Y

N:1 Mirroring

• Y

DHCP Server

• Y

MAC-based Extended ACL

• Y

IP-based Extended ACL

• Y

Ingress ACL on Layer 2 Physical or Logical Interfaces

• Y

Virtual Cluster Switching (VCS)

• Y

Layer 3 Support

• Y

MAC Address Table Size

• 32000

Static MAC Address

• Y

MAC Address Filtering

• 256

Max. Number of SVIs

• 64

Port-Level Rate Limiting (Ingress/Egress)

• Y

Max. Number of Layer 3 Aggregate Interfaces

• 16

Hardware-based CPU Protection Policy (CPP)

• Y

Ruijie Rapid Link Detection Protocol (RLDP)

• Y

IPv6

• Y

IGMP Snooping

• Y

Hardware Specifications

Max. Number of ONUs (APs and Access Switches)

• 320

IP-based Standard ACL

• Y

PON/Ethernet Optical Transceiver Auto-Sensing

• Y

1G PON Optical Transceivers

• Y

2.5G PON Optical Transceivers

• N

10G PON Optical Transceivers

• N

Alerting of Non-Ruijie PON Optical Transceivers

• N

Number of ONUs per 1G PON Port

• 32

Number of ONUs of All 1G PON Ports per Device

• 320

Total Number of PON Ports

• 16

Maximum Number of PON Ports Supported at Device Level

• 16

RTT-based Distance Measurement

• Y

Accuracy of Ranging Between OLT and ONU

• 100 m (328.08 ft.)

Layer 2 Isolation for ONUs Connected to the Same OLT Port (disabled by default)

• Y

Max. Registration Distance for Eligible ONUs  (Default: 5 km, Maximum: 10 km)

• Y

Static Bandwidth Allocation (SBA): Fixed Bandwidth for ONUs

• Y

Dynamic Bandwidth Allocation (DBA): Maximum Bandwidth for ONUs

• Y

OLT Displaying OLT Optical Transceiver Info
(Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode)

• Y

OLT Displaying ONU Optical Transceiver Info
(Temperature/Voltage/Current/Tx Power/Rx Power/Port Mode)

• Y

ONU Optical Transceiver Exception Reporting on OLT
(Abnormal Temperature, Voltage, Current, and Tx/Rx Power)

• Y

OLT Automatically Connecting ONUs

• Y

Type B Dual-homing Protection

• N

Type D Dual-homing Protection

• N

Reset Button

• Y

Automatic Resolution of Management Port IP Address Conflict

• N

Storage Temperature

• –40°C to +70°C (–40°F to +158°F)

Operating Humidity

• 10% to 90% RH

Storage Humidity

• 5% to 95% RH

IP Rating

• IP20
