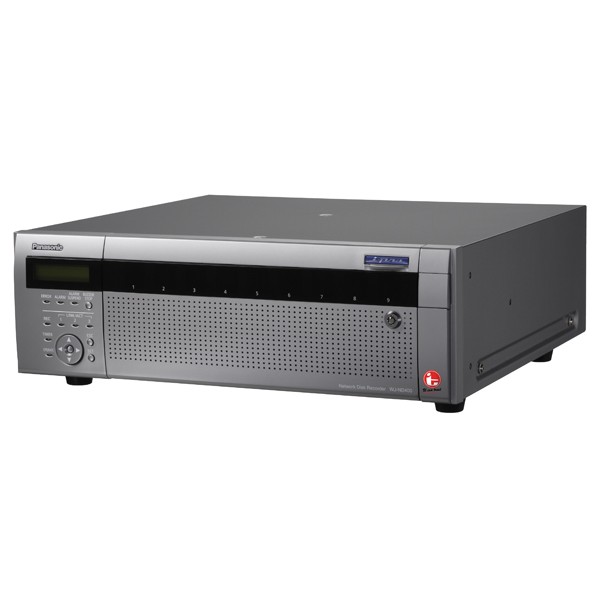

NVR Panasonic iPro WJ-ND400K/G
H.264, MPEG-4 and JPEG multi format Up to 64 network cameras can be connected and recorded Various Recording Modes: Manual, Schedule including Event (Pre/Post),Emergency Playback VMD search Up to 54 TB with 9 HDD slots in the main unit and five WJ-HDE400 optional Extension Units each with 9 HDD slots
Deskripsi Produk
| Supported Cameras | Panasonic i-Pro series Network cameras (Contact Panasonic for BB series and Axis® cameras) | |
| Supported Image Format | MPEG-4, JPEG, M-JPEG | |
| Supported Image Resolution | 1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera) | |
| Supported Audio Format | G.726 (ADPCM) 32 kbps | |
| Maximum Number of Cameras | 64 | |
| Recording | Recording Mode | Manual, Schedule including Event (Pre/Post), Emergency |
| Pre-Event Recording | Up to 15 minutes with dedicated HDD for Pre-Event. Shorter Pre-Event recording is possible without dedicated HDD. |
|
| Scheduled Recording Mode | 8 programs, 6 time zones/day, Independent setup for each day of the week | |
| Frame Rate/Camera | Up to 30 ips (Depending on the Camera) | |
| Browser GUI | Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode |
| REC/Playback Control | REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record, Prev Image, Next image, Goto Date, Goto Last (5 sec. ~ 5 min.), Area select | |
| Search Mode | Filtered search: Time date, Event type, Camera number VMD search: one detection areas per search (works with supported i-Pro cameras and WJ-NT314) |
|
| Display Mode | Spot/Quad (16 patterns) / Spot Sequence / Quad Sequence (Sequence: Live only) | |
| Camera Grouping | 8 groups each with 16 characters title | |
| Image Download | Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. | |
| SD Memory Data Download | Images recorded in the SD card in the i-Pro series cameras can be transferred to the recorder automatically. | |
| Copy | Recorded data of selected cameras and time date range can be copied to the COPY partition. | |
| Camera Title | On the browser, Up to 16 Characters | |
| Clock Display | On the browser. Time: 12 H/24 H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY) | |
| Alarm Control | Reset, Suspend | |
| Digital Zoom | 2x, 4x | |
| System Log | Operator access (100), Network error (1,000), Error (100), Event (750) | |
| System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese | |
| GUI Language | English, French, Italian, Spanish, German, Russian, Chinese, Japanese | |
| Supported OS | Microsoft® Windows Vista® Bussiness 32 bit Microsoft® Windows® XP Home Edition SP2 Microsoft® Windows® XP Professional SP2 The language of the OS must be same as selected GUI language. |
|
| Supported Browser | Windows® Internet Explorer® 7.0 Microsoft® Internet Explorer® 6.0 SP2 | |
| Alarm / Event | Alarm Source | 32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol |
| Event Mode | Alarm / Activity / OFF | |
| Alarm Action | Alarm recording, e-mail notification, Alarm message, Camera positioning, FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED | |
| Alarm Control | Reset, Suspend | |
| Event log | 750 | |
| Network | Network Interface | Camera port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Client port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Maintenance port: 10Base-T (RJ-45) |
| Maximum Band Width | Total 200 Mbps | |
| Bandwidth Control (Client Port) | 32 K / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited | |
| Supported Protocol | TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP | |
| Upon Alarm or Warning | ||
| FTP Client | Upon alarm or Periodic transfer | |
| No. of Simultaneous Users | 16 | |
| User Registration | Up to 32 users | |
| User level | 4 Levels (Programmable) | |
| Partitioning | User - Camera (View only, View & Control, No Access) | |
| Security Method | User authentication (ID and password), Host authentication (IP address), Alteration detection, HTTP Port No. (1 ~ 65,535 except for reserved numbers), FTP Port No. (1 ~ 65,535 except for reserved numbers) | |
| External Interface | Alarm Connector (D-sub25 pin) | Alarm input 1 ~ 7, 17 ~ 32*1 |
| Alarm/Control Connector (D-sub25 pin) | Alarm input 8 ~ 16*1, 1x Alarm output*2, 1x Alarm reset input*1, 1x Alarm suspend input*1 | |
| Control : Emergency recording input*1, Power outage detection input*1, External recording mode switching*1, Power outage recovery completion output*3, Time adjustment input/output*4, +5 V output*5 | ||
| Error/Warning : Network error output*2, Available disk space warning output*2, HDD error output*2, Camera error output*2, Error output*2 | ||
| EXT Storage | High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit | |
| Other Functions | Time Synchronization | Terminal (Master or Slave), NTP (Server/Client) |
| Summer Time | User definable (using menu setup) | |
| HDD | Type | 1x 8.89 cm 500 GB Serial ATA HDD (Factory default), Up to 9x HDDs can be installed. |
| Maximum Capacity | 54 HDD slots (with 5x WJ-HDE400 Extension Units, 9x HDDs installed in each unit) | |
| RAID | RAID 5/6 supported | |
| Partitioning | Normal / Event / Pre-Event / Copy | |
| Viewer Software | Playback Control | Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next image |
| Additional Functions | Alteration detection, Save as JPEG, Two times zoom, Print | |
| Supported OS, Language | Same as browser GUI, Language of the software will be English | |
| General | Safety/EMC Standard | CE (EN60065, EN55022 ClassB, EN55024), C-Tick |
| Power Source | 220 ~ 240 AC, 50 Hz | |
| Power Consumption | approx. 170 W | |
| Ambient Operating Temperature | +5 °C ~ +45 °C (41 °F ~ 113 °F) | |
| Ambient Operating Humidity | 5 % ~ 90 % (no condensation) | |
| Maximum Operating Altitude | 2,000 m (6,500 feet) above sea level | |
| Dimensions | 43.0 cm (W) x 13.2 cm (H) x 40.0 cm (D) (excluding rubber feet and projections) |
|
| Weight | 14 kg (30.9 lbs.) with 1 HDD (Factory default) 20 kg (44.15 lbs.) with 9 HDDs | |
| Note | * Non-voltage make contact, +5 V pull-up 150 Ω * Open collector output, 24 V max., –100 mA * High (+5 V ~ +12 V, 6.3 mA maximum) * 52 kΩ, 5 V pull-up, –100 mA / make contact * 200 mA at maximum * Weights and dimensions are approximate. * Specifications are subject to change without notice. |
|
Informasi & Panduan
Beli NVR Panasonic iPro WJ-ND400K/G Original & Bergaransi Resmi di Ouffice
NVR Panasonic iPro WJ-ND400K/G tersedia di Ouffice dengan jaminan produk original bergaransi resmi. Kami adalah authorized reseller resmi yang bersumber langsung dari distributor di Indonesia.
Produk ini masuk dalam kategori NVR dari Panasonic. Dapatkan harga terbaik dengan menghubungi tim sales kami melalui WhatsApp, konsultasi gratis tanpa kewajiban beli.
Ouffice melayani pembelian satuan maupun pengadaan dalam jumlah besar untuk perusahaan, instansi pemerintah, dan lembaga pendidikan di seluruh Indonesia.
Garansi & Layanan Purna Jual NVR Panasonic iPro WJ-ND400K/G
Unit NVR Panasonic iPro WJ-ND400K/G yang Anda beli melalui Ouffice dilengkapi dengan garansi resmi produsen. Proses klaim garansi dapat dilakukan langsung melalui service center resmi Panasonic di Indonesia.
Kami juga menyediakan layanan konsultasi teknis pasca-pembelian untuk membantu instalasi, konfigurasi awal, dan troubleshooting dasar tanpa biaya tambahan.
Mengapa Membeli NVR Panasonic iPro WJ-ND400K/G di Ouffice?
Produk Original. 100% resmi, bukan rekondisi atau parallel import. Setiap unit memiliki serial number yang dapat diverifikasi ke produsen.
Harga Bersaing. Bandingkan harga kami sebelum memutuskan. Untuk pembelian volume, kami memberikan penawaran harga khusus.
Pengiriman Aman. Dikemas dengan standar pengiriman produk elektronik dan dikirim ke seluruh Indonesia dengan jasa pengiriman terpercaya.
Hubungi kami sekarang melalui WhatsApp atau lihat produk NVR lainnya di Ouffice.
