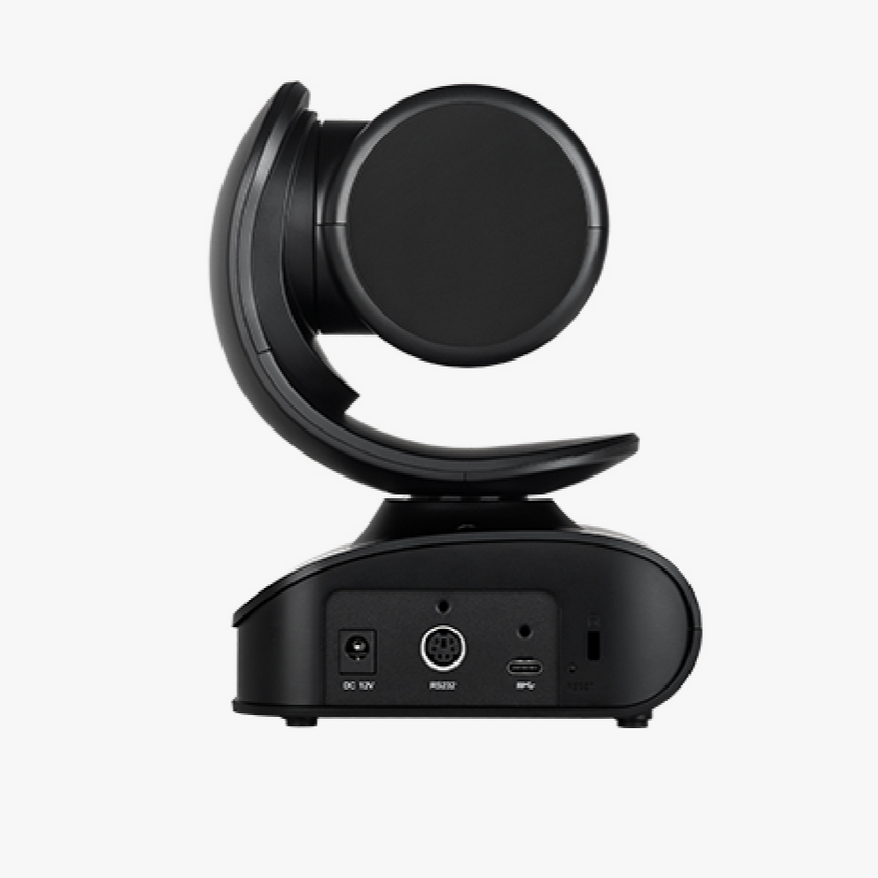

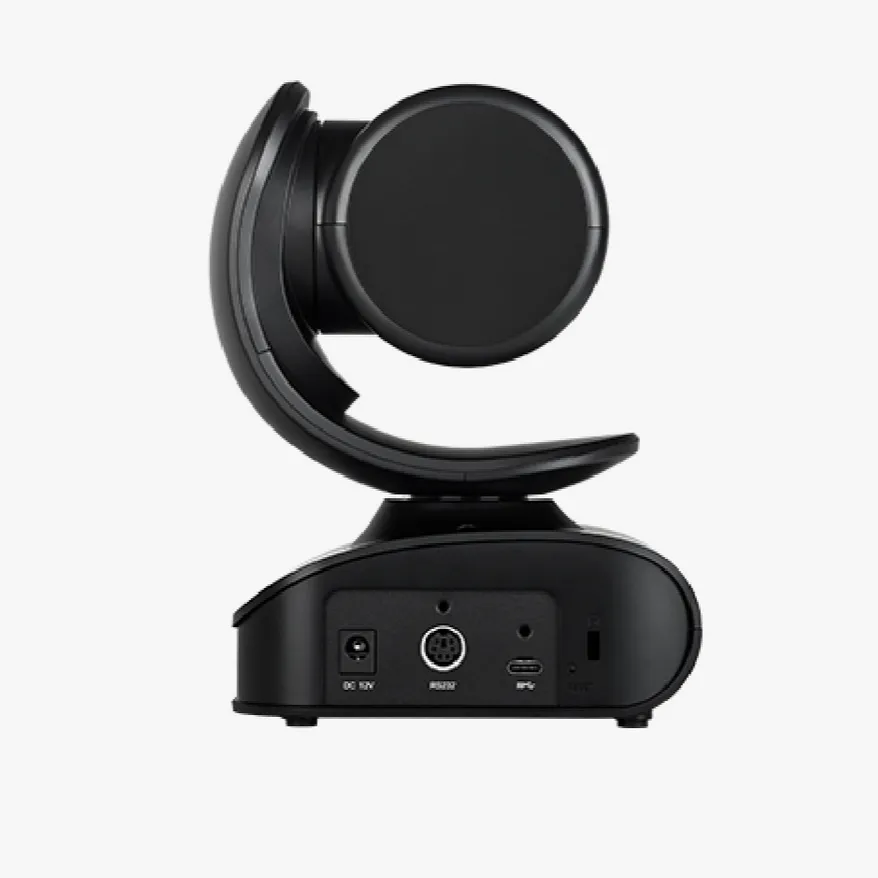

Aver VC540 4K USB Conference Camera

Camera

• Ultra-crystal-clear image support up to 4K
• Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
• SmartFrame: automatic FOV adjustment to fit all participants
• 16X zoom
• Autofocus: minimum working distance 1 meter
• 86° horizontal field of view
• Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
• Standard tripod screw holes
• Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

Speakerphone

• Bluetooth / USB Wired
• Full-duplex microphone array with echo cancellation
• Advanced noise suppression
• 2-microphone array
• 3.5 mm phone-in Jack
• 3.5 mm line out
• Speaker volume: adjustable to 90 dB SPL at 0.5 m
• Touch controls for volume down/up, mute, phone input, call, and hang up
• Can bridge phone-in and USB into one call
• Security: Kensington slot

Motorized Pan & Tilt Movement

• Pan: ±160°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

Connectivity

• Mini DIN 6 for RS232 connector for camera
• USB Type-C connector for camera
• Micro USB connector for speakerphone
• IP (RJ45) connector for speakerphone
• Bluetooth for speakerphone

USB

• 2.0, 3.1 Gen1
• UVC (USB Video Class) 1.1
• UAC (USB Audio Class) 1.0

Control

• IR remote control
• VISCA/pelco and P/pelco D via RS232
• UVC/plug-and-play
• PTZApp

Security and Mount

• Camera mount included for wall or ceiling
• Kensington slot

System Requirements

• Windows 7/10/11
• MacOS 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

Hardware Specifications

• Processor: 3.2 GHz Intel® Core™i5-4460 or later
• 4 GB RAM
• USB 3.1 port, backward compatible with USB 2.0 port

Software Tools

• Room Management (PTZApp 2) : Supports Windows® 7 or later, macOS® 11.6 or later
• EZLive  : Supports Windows® 7 or later
• Cloud Management  : Supports Windows® 7 or later, macOS® 10 or later

Environmental Data

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

Dimensions

• Package dimensions: 259 x 259 x 349 mm
• Package weight: 4.6 kg
• Camera: 130.7 x 97.8 x 171.1 mm
• Speakerphone: 220 x 181.5 x 49.5 mm
• Remote control: 200 x 50 x 21 mm

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
