Aver CAM520 Pro3 PTZ Camera

Camera

• Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.
• Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
• SmartFrame for automatic FOV adjustment to fit all participants
• Smart Composition function offers great visibility for individual participant in the meeting room
• Innovative Preset Framing: Follow presenter based on preset areas
• WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
• Zoom: 36X* total zoom (12X optical zoom)
• Field of view(D/H/V): 80.5°/72.8°/44.1°
• Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
• Lens F#: 1.6 (wide) ~ 2.8 (tele)
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 1m
• Standard tripod screw holes and Kensington slot
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Motorized Pan & Tilt Movement

• Pan: ±170°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (via remote control)
• Fast and quiet pan & tilt movement

Video Format

• YUV, YUY2, MJPEG, NV12
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

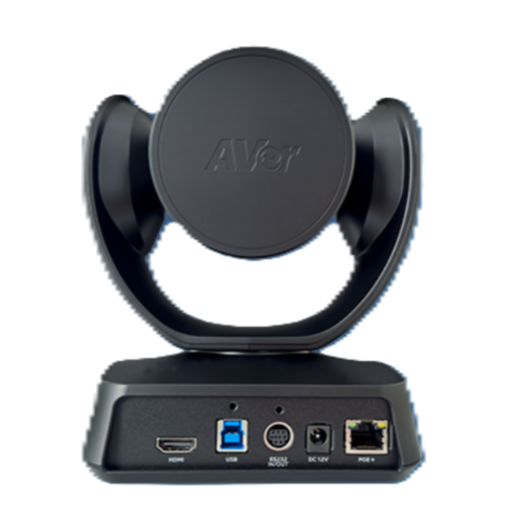

Connectivity

• 12V/2A power adaptor
• Type Non-B Mini DIN 9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)
• USB 3.1 type-B
• IP (RJ45)
• HDMI 1.4

USB

• 3.1 Gen1 Type B, backward compatible with USB 2.0
• UVC (USB video class) 1.1, UVC1.5*

Control

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC/UAC plug and play
• WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
• Room Management (PTZApp 2)

Mount

• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10/11
• Mac OS X 14.4 or higher
• Chromebox 3 version 94.0.4606.114 or later

PC Hardware Requirement

• 3.2 GHz Intel® Core™ i5-4460 processor
• 8 GB RAM or more
• USB 3.1 port , backward compatible with USB2.0 port

Web page browser requirement

• Chrome: version 76.x or above
• Firefox: version 69 or above
• IE: Not support

Power Supply

• AC 100V ~ 240V, 50/60 Hz
• Consumption: 12V, 2A
• PoE+: 802.3at

Software Tools

• Room Management (PTZApp 2) : Supports Windows® 7 or later, macOS® 11.6 or later
• Enterprise Management (PTZ Management) : Supports Windows® 10 or later
• Cloud Management : Supports Windows® 7 or later, macOS® 10 or later
• EZManager 2 : Supports Windows® 7 or later
• EZLive : Supports Windows® 7 or later, macOS® 10.13 or later

Environmental Data

• Operation temperature: 0°C ~ 40°C
• Operation humidity: 20% ~ 80%
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 20% ~ 80%

Dimensions

• Package dimensions: 256 x 256 x 274 mm
• Package weight: 3.335 kg/7.35 lbs
• Camera: 182 x 142.7 x 153 mm/1.47 kg
• Remote control: 200 x 50 x 21 mm/0.09 kg

Compatible Applications

• Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
