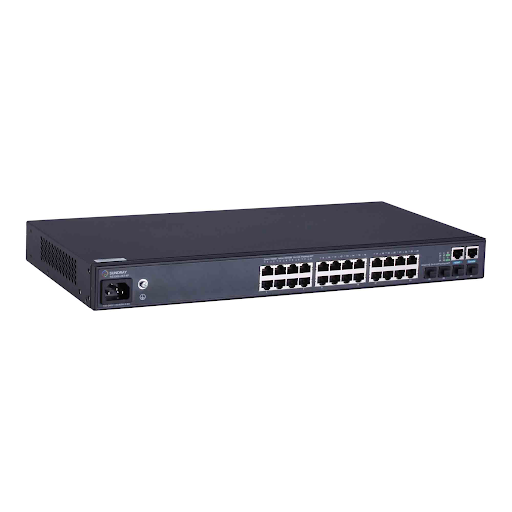

Sundray Smart Switch RS3300-52T-4F
RP. 27,152,500
- The machine provides 52 fixed ports, including 48 Gigabit electrical ports and 4 Gigabit SFP optical ports;
- Support fat and thin mode switching, zero configuration online management in thin mode, realize plug and play;
- Support wireless AC centralized configuration management, including port information, VLAN, port switch, etc.;
- Support visual status check, including switch load, forwarding load, online status, switch status;
- With security features, support linkage with wireless network equipment and security equipment to achieve safer network management and control;
- To meet the needs of large-scale networking, suitable for large-scale campus network, enterprise network, IP metropolitan area network construction access equipment;
| model | RS3300-52T-4F | Applicable scene | Enterprise network, campus network, metropolitan area network |
| Number of interfaces |
48* Gigabit electrical port; 4* Gigabit SFP optical port. |
Other interface | 1*CONSOLE port, 1*MANAGE port |
| Exchange capacity | 336Gbps/3.36Tbps | Packet forwarding rate | 132Mpps/166Mpps |
| Access method | Fat and thin one (support switching) | Online method | Layer 2 broadcast/static IP address/DHCP Option43/DNS domain name |
| Spanning tree | STP, RSTP, MSTP protocols | Routing function |
Support IPv4/IPv6 static routing; Support RIPv1/2, OSPF and other IPv4 dynamic routing; Support IPv4 policy routing; ARP table≧512 |
| Multicast |
Support IGMP v1/v2/v3 snooping; Multicast entry ≧ 1K; |
VLAN | 4K |
| Access security |
Support DHCP Relay, DHCP Server; Support DHCP Snooping; Support Portal authentication; Support 802.1X authentication; Support blacklist and whitelist |
reliability |
Support VRRP, BFD for VRRP; Support BFD for RIP/OSFP/static routing/policy routing; Support Smartlink (backup link); Support Monitor-link (uplink monitoring) |
| MAC | 32K, support automatic learning, filtering, learning limit | Security features | Anti-ARP spoofing, port protection/isolation, anti-DOS/ARP attack , CPU protection |
| Port aggregation | 64, support manual, static LACP | Virtualization |
Support vUnit (stacking technology, virtualize multiple devices into one); Support M-LAG, cross-device link aggregation, paired devices have independent control plane |
| Port mirroring | Support port mirroring | Flow Control | Support ACL, QOS |
| Network management | APP remote management, NAT remote management | Switch portrait | Support visual viewing |
| power supply | 90～264V AC, 47/63Hz | Maximum power consumption of the whole machine | ≦60W |
| fan | Built-in fan | Lightning protection | Built-in lightning protection, 9KV |
| Safety | FCC, CE, RoHS | EEE | Energy-saving technology supporting IEEE 802.3az standard |
| Operating temperature | -5℃～45℃ | storage temperature | -20℃～70℃ |
| Working humidity | 5%～90% RH (no condensation) | physical dimension | 442mm x 280mm x 43.6mm |
|
Unit Termasuk |
Unit Utama |
